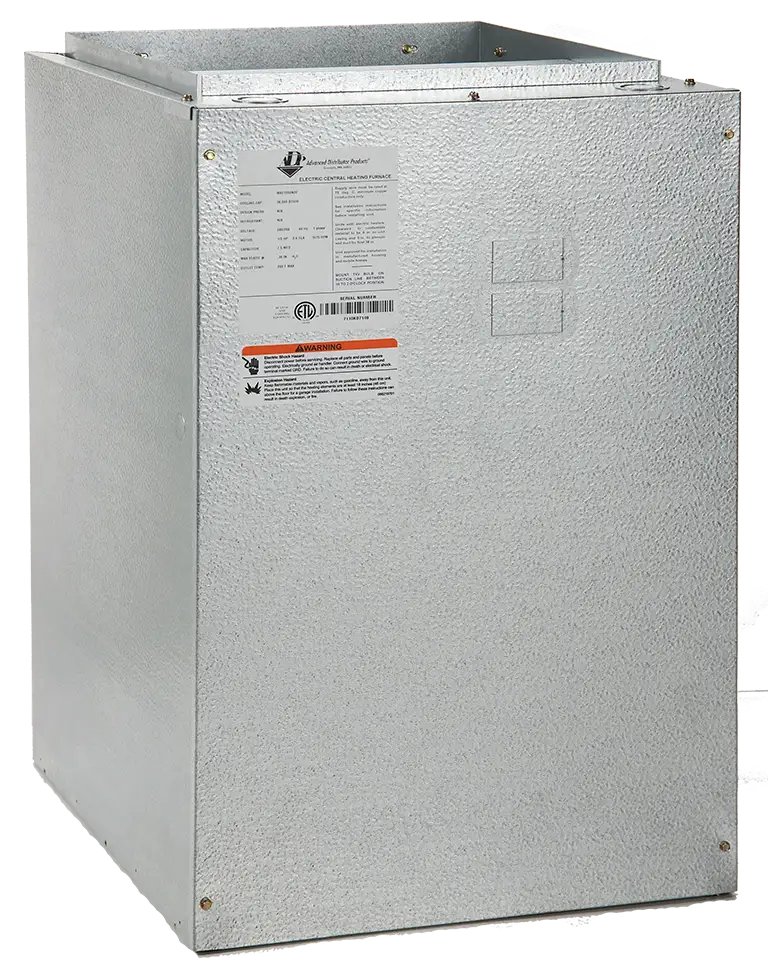

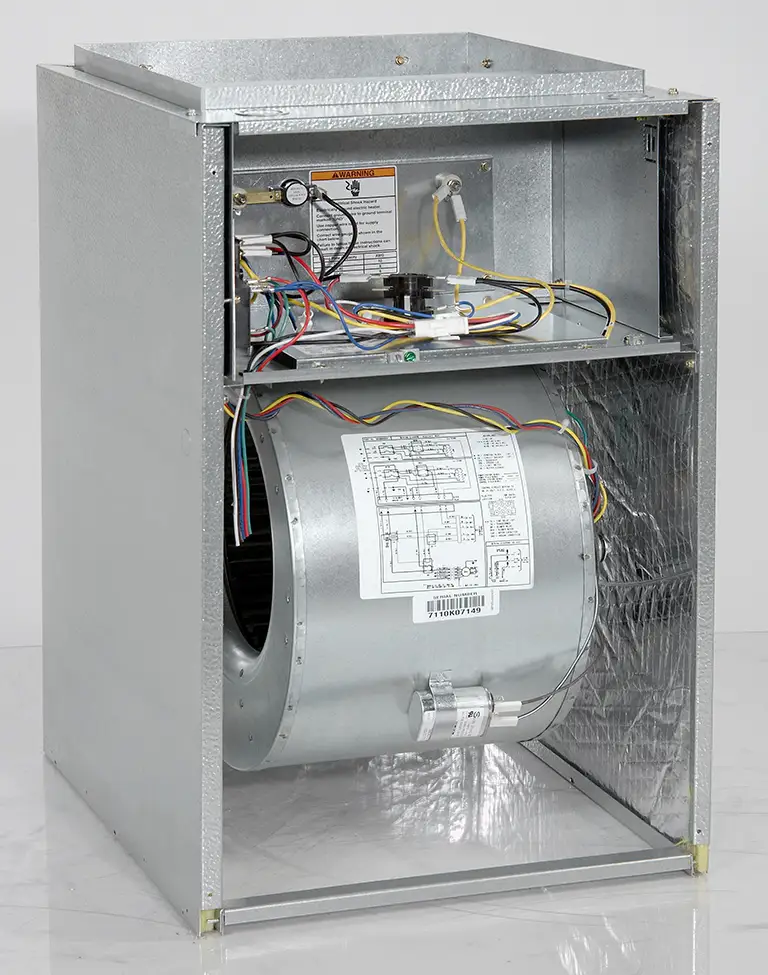

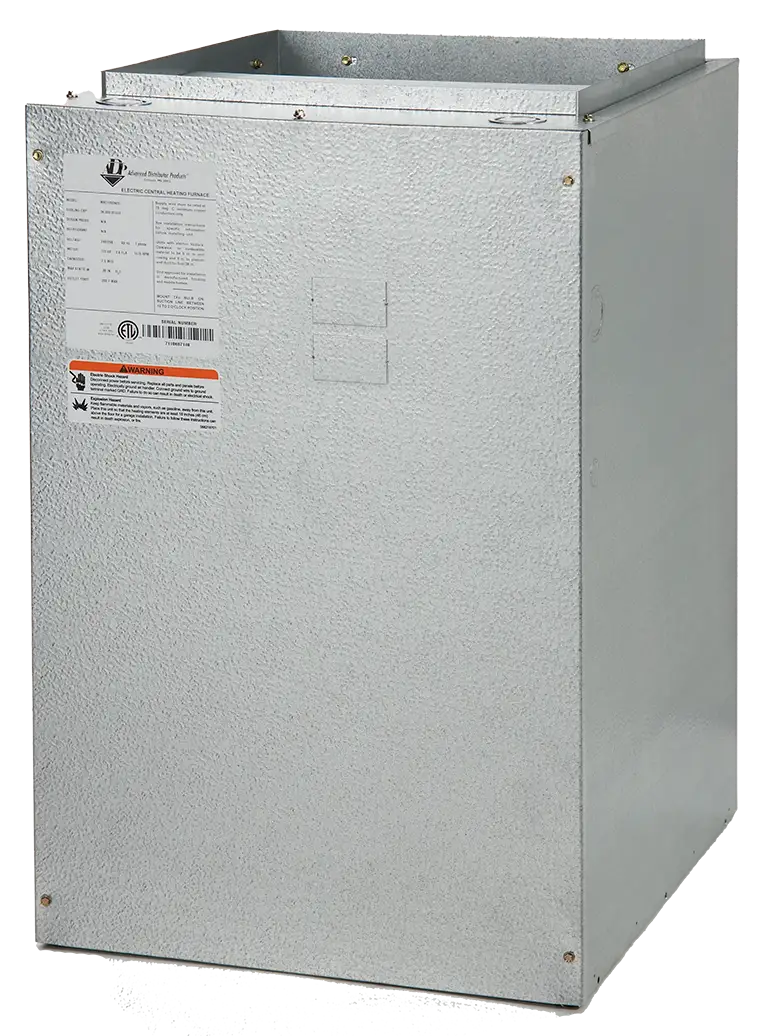

Modular Blower Air Handler – MX Series

View More Air Handlers
Overview

The MX Series indoor modular blowers offer flexible options, including electric heat or hot water heat models. ADP air handlers are 100% tested to ensure reliable performance and are designed to save time on installation.

See Product Literature
Key Features
  • Modular blower offering flexible options and ideal for a variety of applications
  • 208/240 V 5-speed high-efficiency ECM motor with field-installed electric heat kits
  • 120 V PSC motor with hot water heat factory installed
  • Combine with an existing ADP coil in inventory to reduce SKUs
  • Upflow, downflow, and horizontal left or right configurations
Specifications
  • Size: Available 1.5 – 5 tons
  • Motor: 3 Speed PSC and 5-speed high-efficiency ECM motor
  • Heat: Factory installed hot water heat, or field installed electric heat
Literature
MX Series Products are Most Suited in the Following Regions
Nomenclature

This is an explanatory chart breaking down each component within your character string that identifies your product. Learn More

MX E 08 00 N 2 E
Hot Water Coil
MX
Blower Motor
C = 3-speed PSC motor
E = 5-speed ECM motor
Size/Airflow
08 = 800 CFM
12 = 1,200 CFM
16 = 1,600 CFM
20 = 2,000 CFM
Hot Water Coil
00 = No hot water coil
WP = Hot water coil with pump
WN = Hot water coil without pump
AP = Hot water coil with 130°F aquastat & pump
AN = Hot water coil with 130°F aquastat without pump
Line Voltage Connection
N = Stripped wire
Voltage
2 = 208/240V, 60Hz, 1ph. with time delay
4 = 120V, 60Hz, 1ph. with time delay
Heat Size
B = 3 row hot water coil (available on 08 & 20 models)
C = 4 row hot water coil (available on 08, 12 & 16 models)
E = No heat (electric heat kits sold separately)

Notes: 1. Hot water heat models only available with 120V 3-speed PSC motor. 2.Electric heat & no heat models only available with 208/240V 5-speed ECM motor. See Spec Guide for additional nomenclature details.

Similar Products

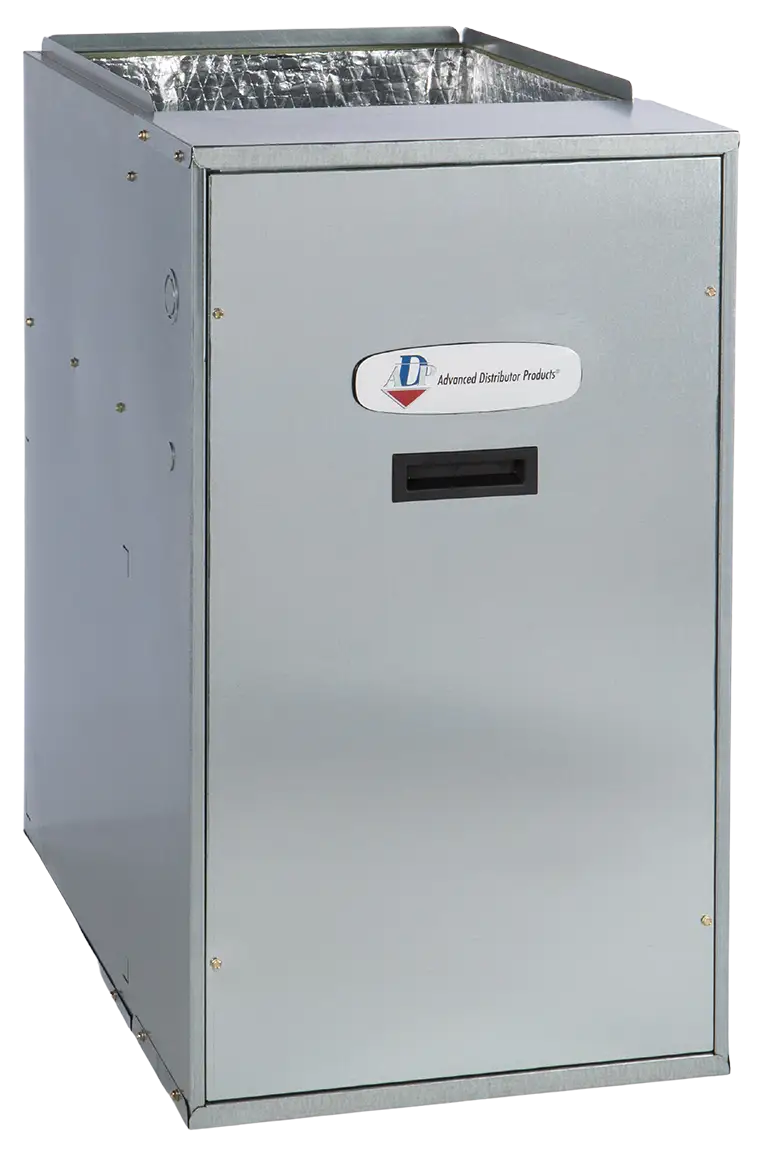

Modular Blower – Moduleflex eFurnace™
