Plenum Coil – PL Series

View More Evaporator Coils
Overview

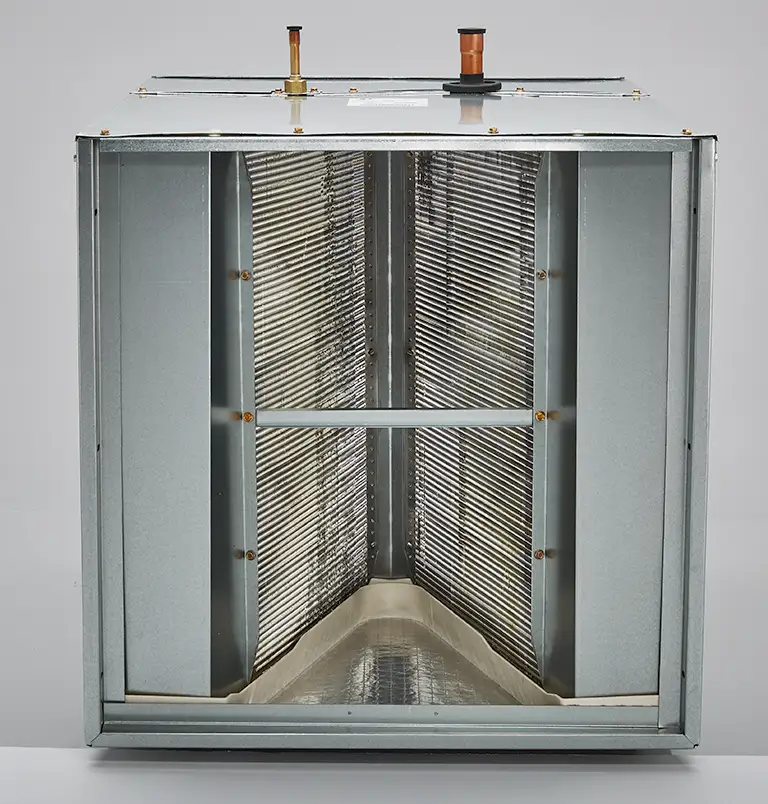

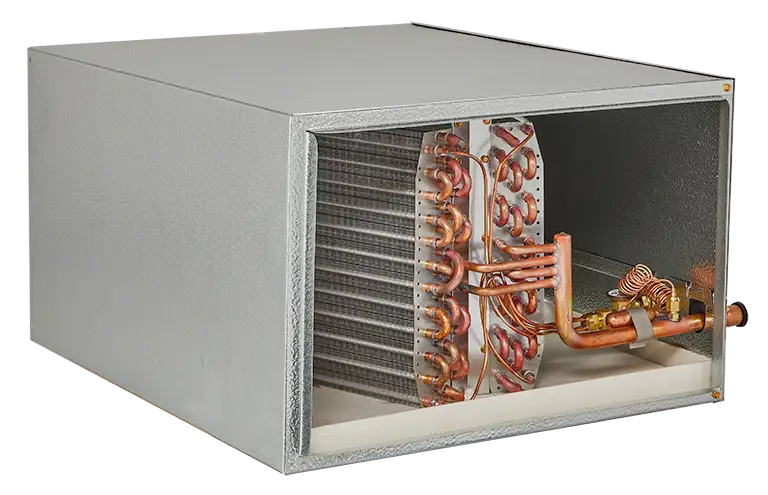

The PL Series premier indoor plenum evaporator coils match perfectly with your system and are uniquely designed to save customers time on installation, while ensuring a leak-free system.

See Product Literature
Key Features
  • FlexCoil: Engineered for all refrigerants

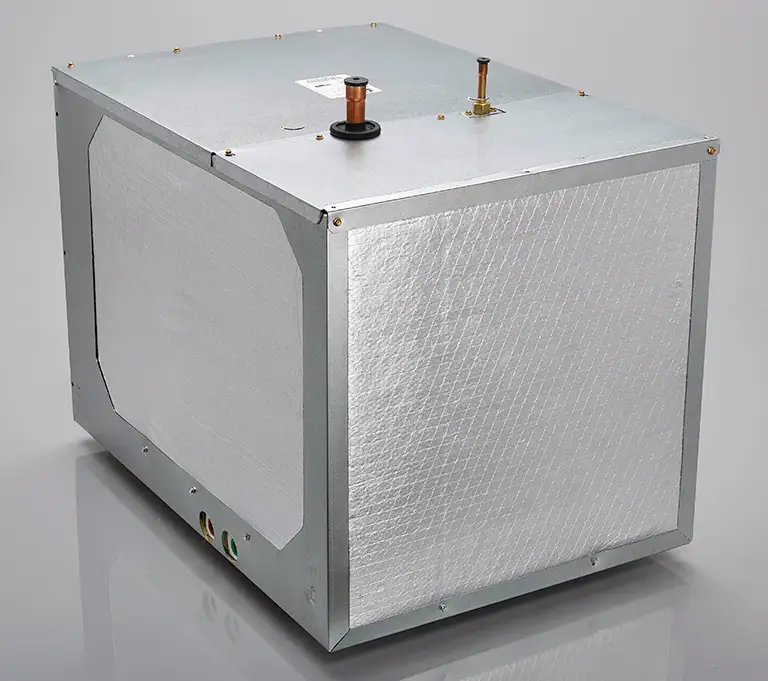

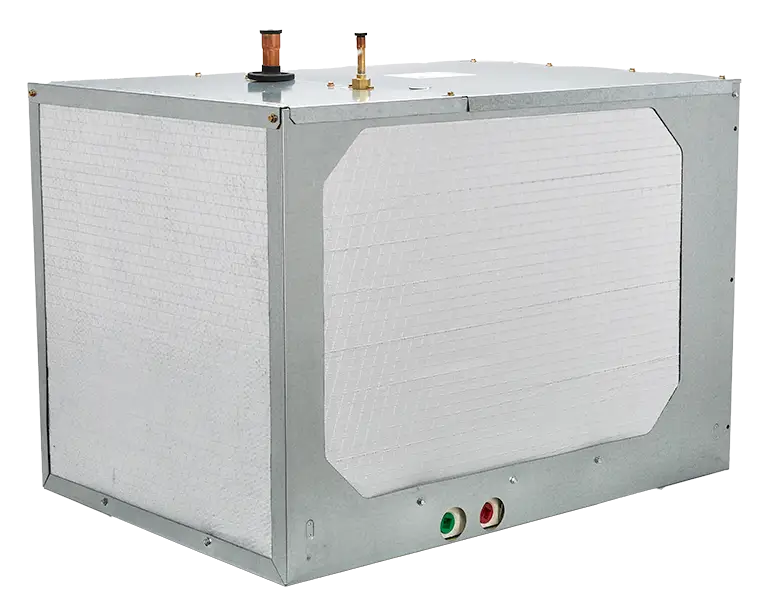

  • Dedicated horizontal coil with Integrated plenum for fast installation
  • Built-in handle allows for easy lifting through tight spaces, such as an attic
  • Top refrigerant connections and dual condensate drains for installation flexibility
  • Top panel with only four screw access and UV light knockouts for installation flexibility
  • Pilot holes for fast secondary drain pan attachment
Specifications
  • Size: Available 1.5 – 5 tons
Literature
PL Series Products are Most Suited in the Following Regions

Nomenclature

A1 Nomenclature
A2L Nomenclature

Product Nomenclature

P L 24 H 145 P12 9 35
Cabinet Type
P = Plenum
Cabinet Color
L = Galvanized
Nominal MBTUH
Coil Type
H = Horizontal Coil
Coil Height
145 = 14.5"
175 = 17.5"
210 = 21.0"
245 = 24.5"
Slab Number
P13
P14
P16 etc.
Metering Device
1 = Piston (R-410A)*
7 = Bleed HP-A/C TXV (R-410A)
8 = Non-bleed HP-A/C TXV (R-410A)
Cabinet Length
35
40

* Piston will always be sized to match the nominal BTU rating of the coil. Note: Secondary drain pan included standard on all models

Product Nomenclature

PL 24 H 145 P12 A 35 R
Cabinet Type
PL = Plenum
Nominal MBTUH
Coil Type
H = Horizontal Coil
Coil Height
145 = 14.5"
175 = 17.5"
210 = 21.0"
245 = 24.5"
Slab Number
P13
P14
P16 etc.
Refrigerant Type & Metering Device (Field Configurable)
1 = Piston (R-454B & R-32)*
A = R-454B Non-bleed HP-A/C TXV
B = R-32 Non-bleed HP-A/C TXV
C = R-454B Bleed HP-A/C TXV
Cabinet Length
35
40
Refrigerant Detection System (Field Configurable)
R = RDS Controller & Sensor (Factory Installed)
L = Leak Detection Sensor (Factory Installed)
N = Not Included (Field Installed)

* R-454B Piston factory installed to match the nominal BTU rating of the coil. Note: Secondary drain pan included standard on all models
