Horizontal Slab – HH Series

View More Evaporator Coils
Overview

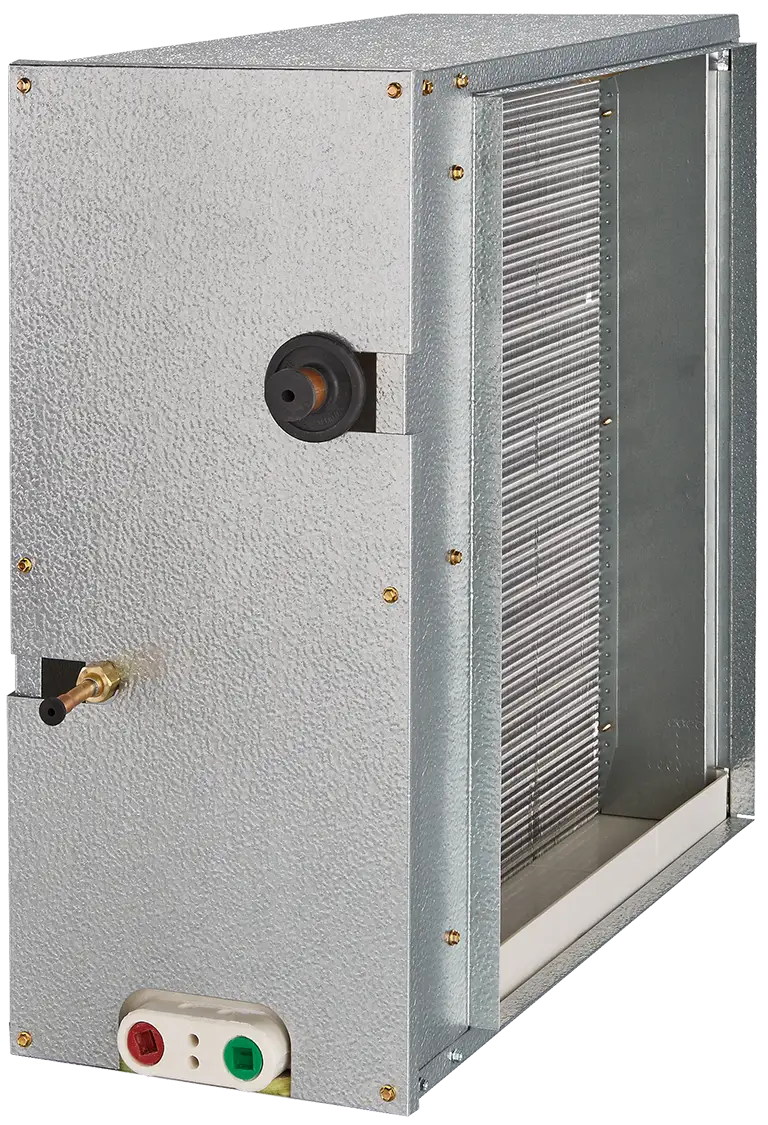

The HH Series premier horizontal evaporator coils match perfectly with any system and are thoroughly tested to ensure quality and save time on installation.

See Product Literature
Key Features
  • FlexCoil: Engineered for all refrigerants
  • Great for replacement of legacy applications
  • Dedicated Horizontal slab coils
  • Bi-directional airflow for installation flexibility
  • Available with piston or TXV factory installed
Specifications
  • Size: Available 1.5 – 5 tons
Literature
HH Series Products are Most Suited in the Following Regions

Nomenclature

A1 Nomenclature
A2L Nomenclature

Nomenclature

H H57 1 24 A 185 A 21 02 AP
Cabinet Color
H = Embossed
Slab Number
Metering Device
1 = Piston (R-410A)
7 = Bleed HP-A/C TXV (R-410A)
9 = Non-bleed HP-A/C TXV (R-410A)
Nominal MBTUH
Cabinet Depth1
A = 10"
Cabinet Opening Width[2]
185 = 18 5/8"
225 = 22 5/8"
265 = 26 5/8"
305 = 30 5/8"
365 = 36 5/8"
425 = 42 5/8"
Airflow
A = Bi-directional airflow
Cabinet Opening Height
21 = 21 1/4"
Product Code
02 = Cased “H”
AP = TXV Access Port 3

[1] Depth is fixed, 10" is the only selectable option. [2] Cabinet opening width is not a selectable option, see dimensions. [3] Piston will always be sized to match the nominal BTU rating of the coil.

Nomenclature

H H57 A 24 A 185 A 21 02 R
Cabinet Color
H = Embossed
Slab Number
Refrigerant Type & Metering Device (Field Configurable)
1 = Piston (R-454B & R-32)1
A = R-454B Non-bleed HP-A/C TXV
B = R-32 Non-bleed HP-A/C TXV
C = R-454B Bleed HP-A/C TXV
Nominal MBTUH
Cabinet Depth
A = 10”
Cabinet Opening Width[2]
185 = 18 5/8"
225 = 22 5/8"
265 = 26 5/8"
305 = 30 5/8"
365 = 36 5/8"
425 = 42 5/8"
Airflow
A = Bi-directional airflow
Cabinet Opening Height
21 = 21 1/4"
Product Code
02 = Cased “H”
Refrigerant Detection System (Field Configurable)
R = Included (Factory Installed)
L = Leak Detection Sensor (Factory Installed)
N = Not Included (Field Installed)

[1] Depth is fixed, 10" is the only selectable option. [2] Cabinet opening width is not a selectable option, see dimensions. [3] R-454b Piston factory installed to match the nominal BTU rating of the coil.
