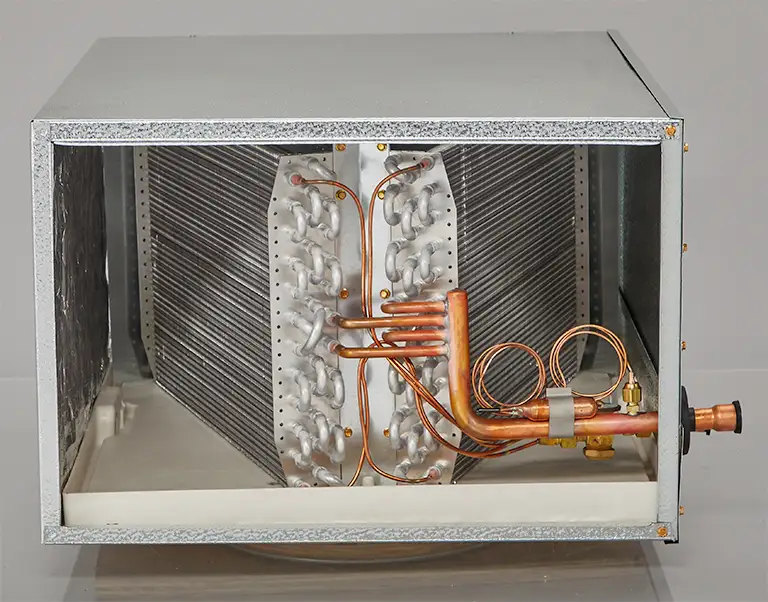

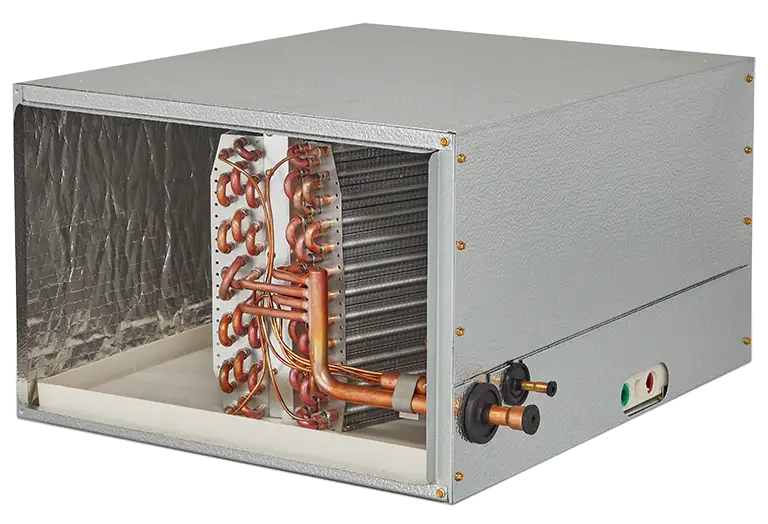

Horizontal Side Connection – HD Series

View More Evaporator Coils
Overview

The HD Series premier horizontal evaporator coils match perfectly with any system and are thoroughly tested to ensure quality and save time on installation.

See Product Literature
Key Features
  • FlexCoil: Engineered for all refrigerants
  • Dedicated horizontal coils offering the perfection solution for crawl spaces
  • Counterflow capable to meet any airflow direction
  • Side refrigerant connections for easy access to coil
  • Built-in plenum flanges with rounded corners for fast and safe installation
  • Available in copper or aluminum
Specifications
  • Size: Available 1.5 – 5 tons
Literature

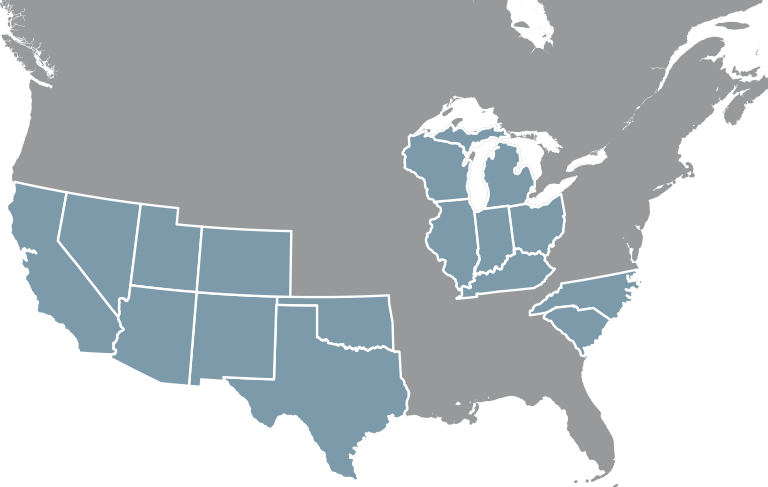

HD Series Products are Most Suited in the Following Regions

Nomenclature

A1 Nomenclature
A2L Nomenclature

Nomenclature

H D02 1 24 E 145 B 21 47 AP
Cabinet Color
H = Embossed
A = Armstrong
C = Carrier/
Bryant/
Payne
G = ICP
J = Goodman/
Amana
N = Nordyne
R = Rheem/
Ruud
T = Trane/
American
Standard
Y = York/
Luxaire/
Coleman
Slab Number
D = Copper Slab
P = Aluminum Slab
Metering Device
1 = Piston (R-410A)1
7 = Bleed HP-A/C TXV (R-410A)
9 = Non-bleed HP-A/C TXV (R-410A)
Nominal MBTUH
Cabinet Width
E = 21.5" (Standard)
Cabinet Height
145 = 14.5"
175 = 17.5"
210 = 21.0"
245 = 24.5"
Duct Flange
B = 0.75" (Standard)
Cabinet Length
21 = 21.5"
26 = 26.5"
31 = 31.5"
Product Code
47 = Refrigerant connections on side of cabinet
AP = TXV access port 1

[1] Piston will always be sized to match the nominal BTU rating of the coil. Note: Cabinet length not a selectable option, see dimensions.

Nomenclature

H D12 A 24 E 145 B 21 47 R
Cabinet Color
H = Embossed
A = Armstrong
C = Carrier/
Bryant/
Payne
G = ICP
J = Goodman/
Amana
N = Nordyne
R = Rheem/
Ruud
T = Trane/
American
Standard
Y = York/
Luxaire/
Coleman
Slab Number
D = Copper Slab
P = Aluminum Slab
Refrigerant Type & Metering Device (Field Configurable)
1 = Piston (R-454B & R-32)1
A = R-454B Non-bleed HP-A/C TXV
B = R-32 Non-bleed HP-A/C TXV
C = R-454B Bleed HP-A/C TXV
Nominal MBTUH
Cabinet Width
E = 21.5" (Standard)
Cabinet Height
145 = 14.5"
175 = 17.5"
210 = 21.0"
245 = 24.5"
Duct Flange
B = 0.75" (Standard)
Cabinet Length
21 = 21.5"
26 = 26.5"
31 = 31.5"
Product Code
47 = Side refrigerant connections
Refrigerant Detection System (Field Configurable)
R = Included (Factory Installed)
L = Leak Detection Sensor (Factory Installed)
N = Not Included (Field Installed)

[1] R-454B Piston factory installed to match the nominal BTU rating of the coil. [2] Cabinet length not a selectable option, see dimensions.
