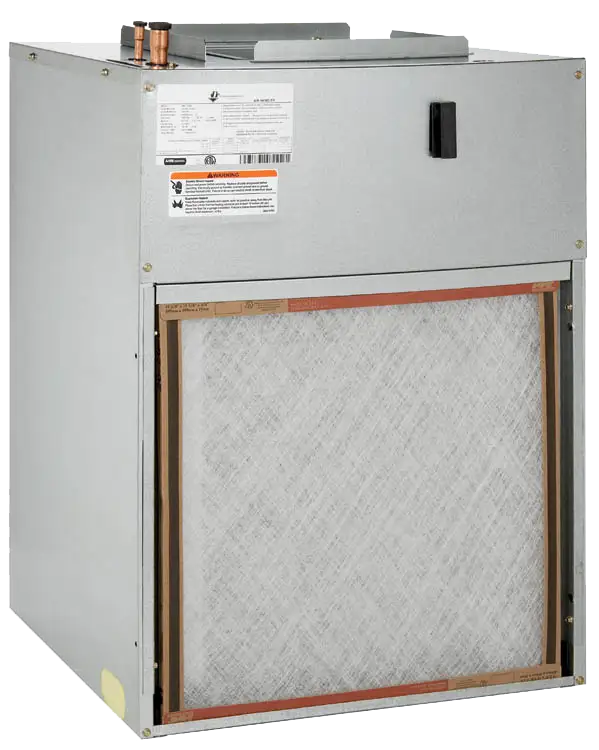

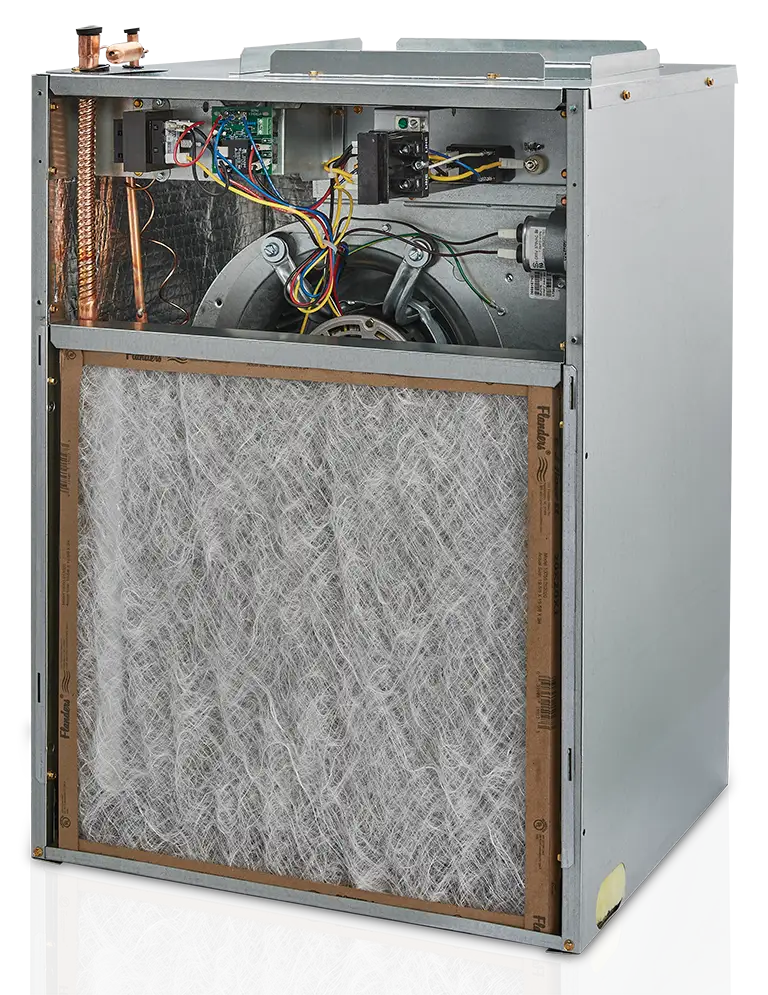

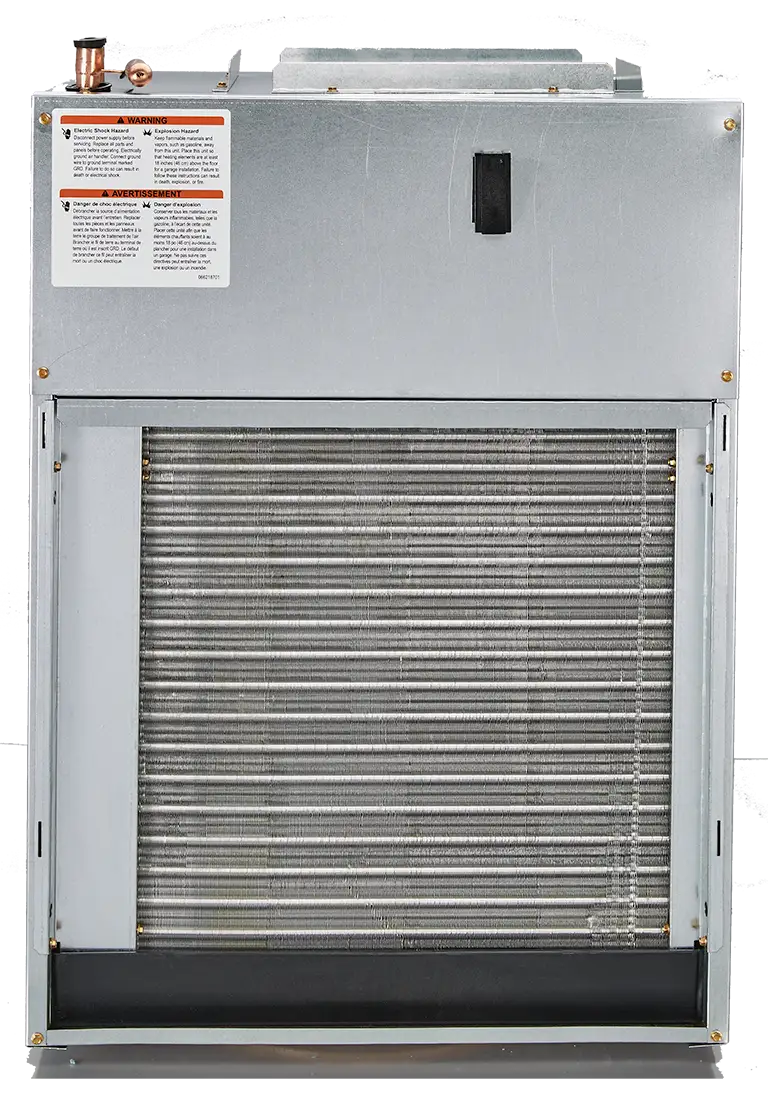

Compact Wall Mount Air Handler – S Series

View More Air Handlers
Overview

The S Series compact wall mount air handlers are designed to meet the needs of low height and light weight requirements within the multi-family market.

Multifamily Logo
Designed for seamless installation in multi-family applications

ADP‘s Compact Wall Mount and Soffit Mount Air Handler Series

Learn More
See Product Literature
Key Features
  • Compact wall mount to meet the needs of multi-family market for wall or closet installations
  • Compact, lightweight design, at 30” tall and weighing 80 lbs. or less
  • Available in copper or aluminum
  • PSC or optional 5-speed high efficiency motor: 240/208 V, 60 Hz
  • Factory installed electric heat available
  • Top refrigerant connections for easy brazing
Specifications
  • Size: Available 1.5 – 3.0 tons
  • Motor: 3 Speed PSC and 5-speed high-efficiency ECM motor
  • Heat: Factory installed electric heat
Literature
S Series Products are Most Suited in the Following Regions

Nomenclature

A1 Nomenclature
A2L Nomenclature

A1 Refrigerants Product Nomenclature

S M2 1 24 05 A
Series
S Serues Wall Mount
Slab Number
K# Copper slab
L# Copper slab
M# Aluminum slab
Metering Device
1 = Piston (R-410A)
7 = Bleed HP-A/C TXV (R-410A)
9 = Non-bleed HP-A/C TXV (R-410A)
Unit Size (Nominal MBTUH)
18, 24, 30, 36 = 3 speed PSC motor
19, 25, 31, 37, 39 = 5-speed ECM motor
Electric Heat
00 = No heat
05 = 5 kW (all sizes)
07 = 7.5 kW (all sizes)
10 = 10 kW (all sizes)
Revision

A2L Refrigerants Product Nomenclature

S M2 A 24 05 R
Series
S Serues Wall Mount
Slab Number
K# Copper slab
L# Copper slab
M# Aluminum slab
Metering Device
1 = Piston (R-454B & R-32)
A = R-454B Non-bleed HP-A/C TXV
B = R-32 Non-bleed HP-A/C TXV
C = R-454B Bleed HP-A/C TXV
Unit Size (Nominal MBTUH)
18, 24, 30, 36 = 3 speed PSC motor
19, 25, 31, 37, 39 = 5-speed ECM motor
Electric Heat
00 = No heat
05 = 5 kW (all sizes)
07 = 7.5 kW (all sizes)
10 = 10 kW (all sizes)
Refrigerant Detection System
R = Included (Factory Installed)
Similar Products

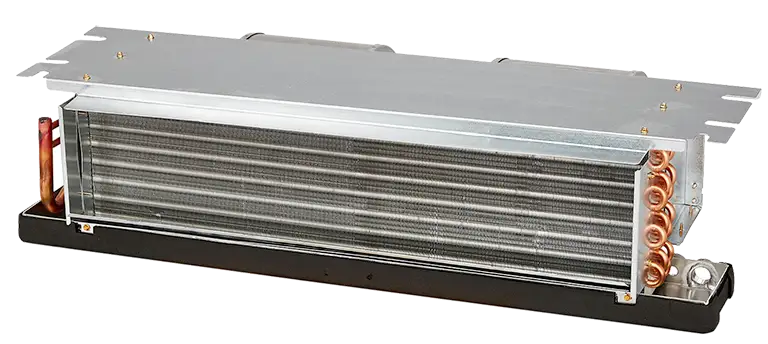

Soffit Mount Air Handler – CP Series
