Overview

ADP evaporator coils are uniquely designed to save customers time on installation while ensuring a leak-free system. We offer custom solutions to leverage local market differentiation and growth opportunities.

  • Out-of-the-box installation
  • SKU optimization
  • Industry-exclusive Microban® anti-microbial product protection
  • Available 10-year extended warranty with registration
  • FlexCoil: Engineered for all refrigerants
Product Literature

Multi-Position – HE Series

The HE Series premier evaporator coils match perfectly with any system, providing an upgrade over standard matched coils.

Learn More

Key Features

  • FlexCoil: Engineered for all refrigerants
  • Lower heights and variable widths for a perfect furnace fit
  • Cased, uncased, multi-position and upflow/ downflow configurations
  • Built-in plenum flanges with rounded corners for fast and safe installation
  • Front panel with only four screw access and non-captive refrigerant lines for fast and easy coil access
  • Available in copper or aluminum
  • Painted cabinet options for furnace color coordination

Documents

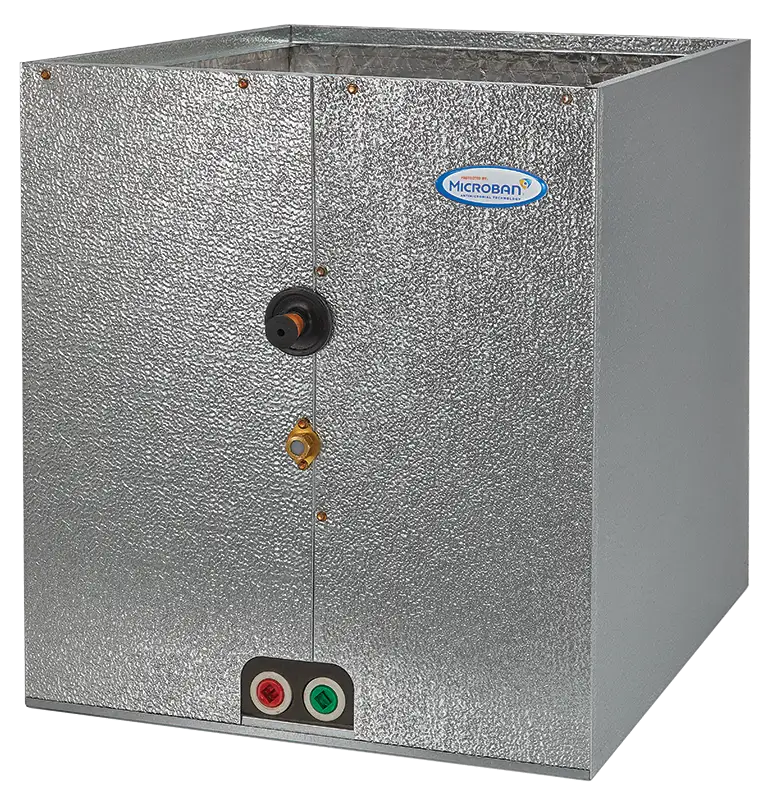

Dedicated Downflow

This worry-free dedicated downflow evaporator coils match perfectly with any system and are thoroughly tested to ensure quality and deliver reliable ratings. They're also designed to save time on installation while ensuring a leak-free system.

Learn More

Key Features

  • FlexCoil: Engineered for all refrigerants
  • Short height to fit constrained spaces
  • Fits furnace with no additional support needed
  • Better air flow for higher performance versus N-coil
  • Out-of-the-box reliable downflow solution and no kit needed
  • Front panel with only six screws for fast and easy coil access; non-captive refrigerant lines

Documents

Horizontal Top Connection – V Series

The V Series premier evaporator coils match perfectly with your system, providing an upgrade over standard matched coils. The V-Series is uniquely designed to save customers time on installation while ensuring a leak-free system.

Learn More

Key Features

  • FlexCoil: Engineered for all refrigerants
  • Dedicated horizontal coils offer strategic attic solutions over standard MP coils
  • Top refrigerant connections eliminating counter flow and line re-routing
  • Dual condensate drains on each side for additional installation flexibility
  • Top panel with only four screws for fast and easy coil access
  • Available in copper or aluminum
  • Painted cabinet options for furnace color coordination

Documents

Plenum Coil – PL Series

The PL Series premier indoor plenum evaporator coils match perfectly with your system and are uniquely designed to save customers time on installation, while ensuring a leak-free system.

Learn More

Key Features

  • FlexCoil: Engineered for all refrigerants
  • Dedicated horizontal coil with Integrated plenum for fast installation
  • Built-in handle allows for easy lifting through tight spaces, such as an attic
  • Top refrigerant connections and dual condensate drains for installation flexibility
  • Top panel with only four screw access and UV light knockouts for installation flexibility
  • Pilot holes for fast secondary drain pan attachment

Documents

Horizontal Side Connection – HD Series

The HD Series premier horizontal evaporator coils match perfectly with any system and are thoroughly tested to ensure quality and save time on installation.

Learn More

Key Features

  • FlexCoil: Engineered for all refrigerants
  • Dedicated horizontal coils offering the perfection solution for crawl spaces
  • Counterflow capable to meet any airflow direction
  • Side refrigerant connections for easy access to coil
  • Built-in plenum flanges with rounded corners for fast and safe installation
  • Available in copper or aluminum

Documents

Horizontal Slab – HH Series

The HH Series premier horizontal evaporator coils match perfectly with any system and are thoroughly tested to ensure quality and save time on installation.

Learn More

Key Features

  • FlexCoil: Engineered for all refrigerants
  • Great for replacement of legacy applications
  • Dedicated Horizontal slab coils
  • Bi-directional airflow for installation flexibility
  • Available with piston or TXV factory installed

Documents

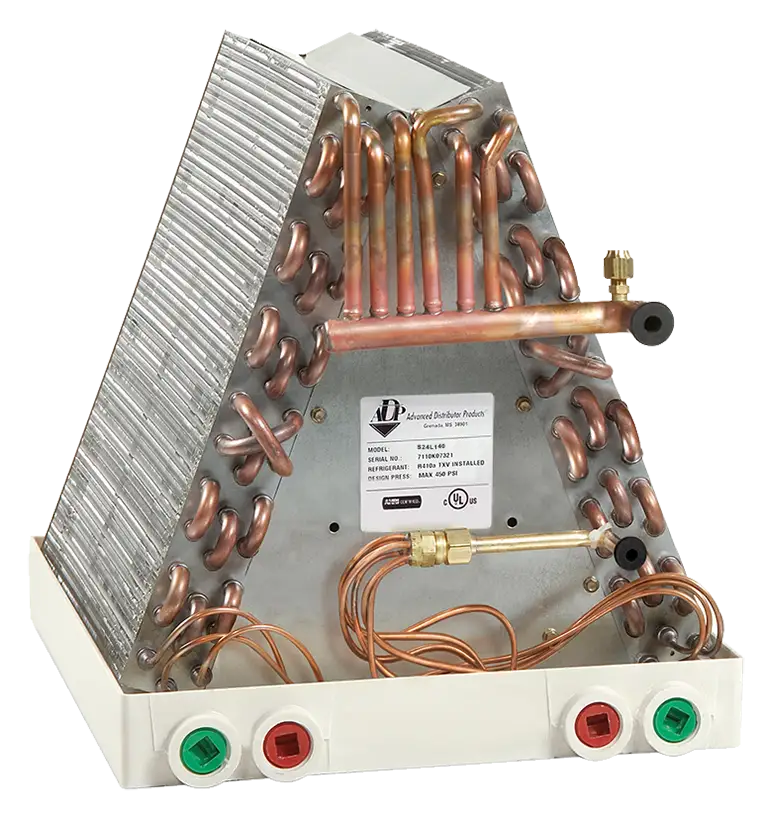

Manufactured Home – M Series

M Series premier evaporator coils are uniquely designed to save customers time on installation.

Learn More

Key Features

  • FlexCoil: Engineered for all refrigerants
  • Manufactured housing application
  • Filter friendly top plate
  • Sized out down-turned headers for easy line brazing
  • Coils charged with dry air for greater flexibility with both R-22 and R-410A applications
  • Low water retention drain pan design with built-in downflow drip shields

Documents

Service Coils

M Series premier evaporator coils are uniquely designed to save customers time on installation.

Learn More

Key Features

  • Perfect replacement for 8-12 SEER coils
  • Sized for legacy installations
  • Same features as rated coils
  • Embossed cabinets for universal furnace match
  • Supplied with pistons for both R-22 and R-410A applications

Documents

Compare Evaporator Coils
HE Series
The HE Series premier evaporator coils match perfectly with any system, providing an upgrade over standard matched coils.
Dedicated Downflow
This worry-free dedicated downflow evaporator coils match perfectly with any system and are thoroughly tested to ensure quality and deliver reliable ratings. They're also designed to save time on installation while ensuring a leak-free system.
V Series
The V Series premier evaporator coils match perfectly with your system, providing an upgrade over standard matched coils. The V-Series is uniquely designed to save customers time on installation while ensuring a leak-free system.
PL Series
The PL Series premier indoor plenum evaporator coils match perfectly with your system and are uniquely designed to save customers time on installation, while ensuring a leak-free system.
HD Series
The HD Series premier horizontal evaporator coils match perfectly with any system and are thoroughly tested to ensure quality and save time on installation.
HH Series
The HH Series premier horizontal evaporator coils match perfectly with any system and are thoroughly tested to ensure quality and save time on installation.
Manufactured House - M Series
M Series premier evaporator coils are uniquely designed to save customers time on installation.
Service Coils
M Series premier evaporator coils are uniquely designed to save customers time on installation.
SERIES HE Series Dedicated Downflow V Series PL Series HD Series HH Series Manufactured House - M Series Service Coils
Description Multi-Position Horizontal Top Connection Plenium Coil Horizontal Side Connection Horizontal Slab Manufactured Home
FlexCoil
R-410A ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
R-32 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
R-454B ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Warranty
Extended Warranty Available ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Coil Features
Copper Coil ✓ ✓ ✓ ✓ ✓ ✓
Aluminum Coil ✓ ✓ ✓ ✓
Application
Vertical Upflow/Downflow ✓ ✓ Downflow ✓ ✓
Horizontal Right/Left ✓ ✓ ✓ ✓ ✓ ✓
AC/HP ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Cased ✓ ✓ ✓ ✓ ✓ ✓ ✓
Uncased ✓ ✓ ✓
Cabinet
Embossed ✓ ✓ ✓ ✓ ✓ ✓ ✓
Painted ✓ ✓
Drain Pan
Microban Antimicrobial ✓ ✓ ✓ ✓ ✓ ✓ ✓
Sloped Design ✓ ✓ ✓ ✓ ✓ ✓
UV Resistant ✓ ✓ ✓ ✓ ✓ ✓ ✓
Metering
Piston ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
TXV ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ Available factory installed * Available field installed kit ° Side return available in 12-36 MBTUH only ** Side return on HW models only

Description
Highly Customizable Coils
FlexCoil
R-410A
R-32
R-454B
Warranty
Extended Warranty Available
Coil Features
Copper Coil
Aluminum Coil
Application
Vertical Upflow/Downflow
Horizontal Right/Left
AC/HP
Cased
Uncased
Cabinet
Embossed
Painted
Drain Pan
Microban Antimicrobial
Sloped Design
UV Resistant
Metering
Piston
TXV
Description
Dedicated Downflow Coils
FlexCoil
R-410A
R-32
R-454B
Warranty
Extended Warranty Available
Coil Features
Copper Coil
Aluminum Coil
Application
Vertical Upflow/Downflow : Downflow
AC/HP
Cased
Cabinet
Embossed
Drain Pan
Microban Antimicrobial
Sloped Design
UV Resistant
Metering
Piston
TXV
Description
Horizontal Coils w/ Top Connections
FlexCoil
R-410A
R-32
R-454B
Warranty
Extended Warranty Available
Coil Features
Copper Coil
Aluminum Coil
Application
Horizontal Right/Left
AC/HP
Cased
Cabinet
Embossed
Painted
Drain Pan
Microban Antimicrobial
Sloped Design
UV Resistant
Metering
Piston
TXV
Description
Plenum Coils w/ Top Connections
FlexCoil
R-410A
R-32
R-454B
Warranty
Extended Warranty Available
Coil Features
Aluminum Coil
Application
Horizontal Right/Left
AC/HP
Cased
Cabinet
Embossed
Drain Pan
Microban Antimicrobial
Sloped Design
UV Resistant
Metering
Piston
TXV
Description
Horizontal Coils w/ Side Connections
FlexCoil
R-410A
R-32
R-454B
Warranty
Extended Warranty Available
Coil Features
Application
Horizontal Right/Left
AC/HP
Cased
Cabinet
Embossed
Drain Pan
Microban Antimicrobial
UV Resistant
Metering
Piston
TXV
Description
Horizontal Slab Coils
FlexCoil
R-410A
R-32
R-454B
Warranty
Extended Warranty Available
Coil Features
Copper Coil
Application
Horizontal Right/Left
AC/HP
Cased
Cabinet
Embossed
Drain Pan
Microban Antimicrobial
UV Resistant
Metering
Piston
TXV
Description
Uncased Manufactured Housing Coils
FlexCoil
R-410A
R-32
R-454B
Warranty
Extended Warranty Available
Coil Features
Copper Coil
Application
Vertical Upflow/Downflow
AC/HP
Uncased
Cabinet
Drain Pan
Sloped Design
Metering
Piston
TXV
Description
FlexCoil
R-410A
R-32
R-454B
Warranty
Extended Warranty Available
Coil Features
Copper Coil
Application
Vertical Upflow/Downflow
Horizontal Right/Left
AC/HP
Cased
Uncased
Cabinet
Embossed
Drain Pan
Microban Antimicrobial
Sloped Design
UV Resistant
Metering
Piston

✓ Available factory installed

* Available field installed

° Sizes are for residential application
